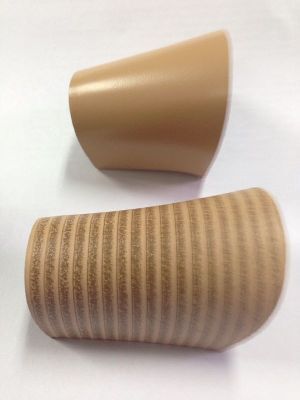

Shoe Heel Pad Printing Machine




Shoe Heel Pad Printing Machine is the latest entry model of pad printing machine, which is sued to decorate women’s heels, with a maximum height of 13 cm/5.5 inches. It can also be used to decorate small platform heels. The best thing about our Shoe Heel Pad Printing Machine is that it is fast and easy to operate. It is gaining high popularity due to its highly automatic operation, adjustable blading stroke and fast working speed. We are named among the renowned Manufacturers and Suppliers of Pad Printing Machine. One can obtain Pad Printing Machine from us in small as well as bulk quantities.

Function :
  • With microcomputer-controller, fully automatic operation makes the printing more mechanical
  • With aluminium alloy structure frame and metal coating surface, the machine is easy to move but steady
  • With function of levelling ink by sliding automatically on front /back, avoiding printing ink partial solidification
  • Adjustable inking pressure and printing speed meets different printing requirements
  • 360o adjustable rubber pad angle and ±5o adjustable worktable angle ensure repeat precision to be less 0.05mm
  • Worktable, plastic head and ink cup can be adjusted X, Y,Z direction
  • Close ink cup system makes more environmental
  • Could print both sides of heels at one time, improve printing efficiency.


Technical Parameters

Model No. RP-H1-XT
Max.Printing Area 130x320mm
Max.Plate Size 150x545mm
Ink Cup Diameter 140mm
Power 220/110v 50-60Mhz 150w
Transverse Stroke 200mm
Vertical Stroke 120mm
Printing Speed 400 pairs /hr.
Printing Workstation 1pc
Automatic Grade Semi-automatic
Color & Page One Color
Warranty One year
Usage Shoe heel, Shoe wedge, Shoe sole
